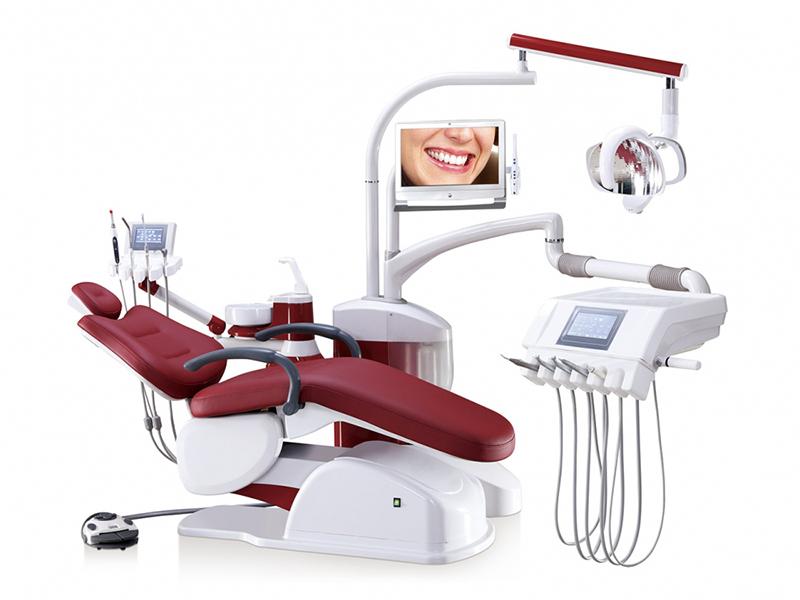

A6800 Dental Chair Unit (electric dental chair, handpiece, patient monitor, LED light)

Technical parameters

Features

The dental chair unit can store 3 operating systems for 3 users (user1, user2, user3).
The central body of the dental chair unit is attached to the ground, which improves stability and security during the operation process.
The chair features a comfortable, ergonomic structure, even when laying down.
The spittoon is adjustable in any direction, making it easy for every patient to spit.
The dental chair unit has a touch screen digital system and cross-infection prevention function.
The A6800 Dental Chair Unit has a pulse oximetry and heart-rate monitoring system, which allows the dentist to monitor patient's health.
The intraoral camera assists the dentist in monitoring the patient's oral cavity, and thus, facilitates communication between the dentist and patient.

Component introduction

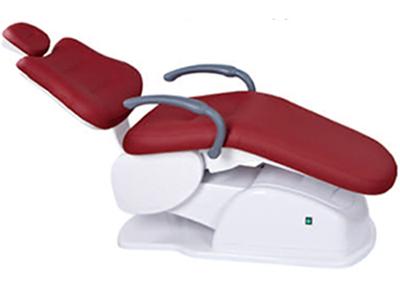

Electric patient chair

The chair uses electric control for the height
The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
The chair height is controlled using a low voltage DC24V motor with a gas spring to assist, which ensures lifting is stable and fast.

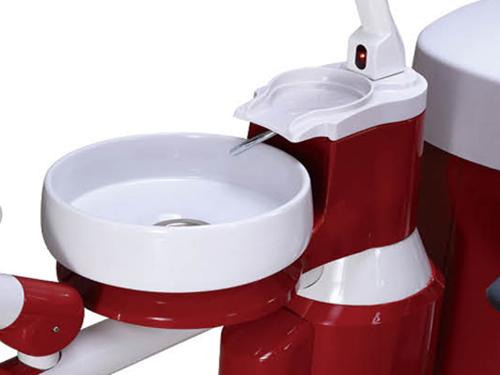

Spittoon

The spittoon can be turned 90 degrees, which makes spitting easier.
The height and the position of the spittoon can be controlled using a manual or induction mode.
Users can control the spittoon to 3 different heights using the nurse control console.
The ceramic tray and water nozzle are removable, making the disinfection process easier.
The spittoon has an inductive water supply system to provide the patient with mouth wash.

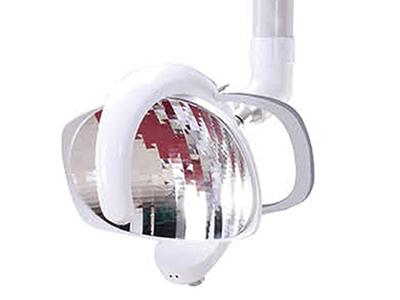

Dental operatory light

Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
Users can switch the light on/off in a manual or induction mode, as well as adjust the light intensity in a manual or induction mode.

Monitor system

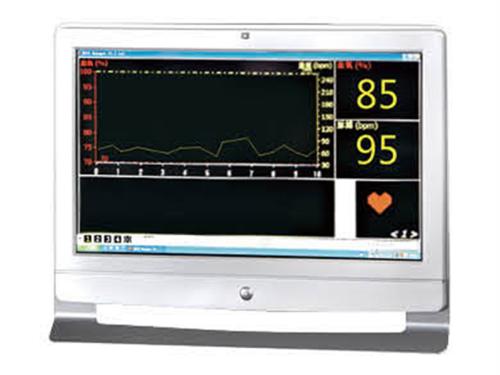

A pulse oximeter monitoring system monitors the physical condition of the patient accurately during treatment.

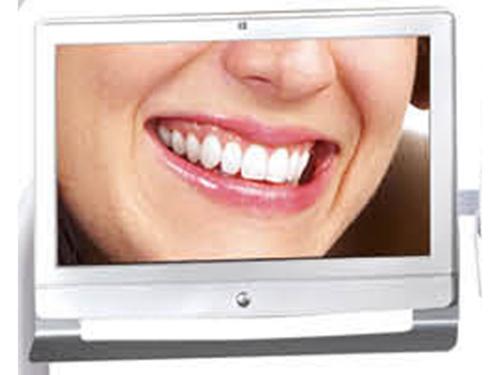

The intraoral camera assists the dentist in monitoring the patient's oral condition, and thus, promotes communication between the dentist and patient.

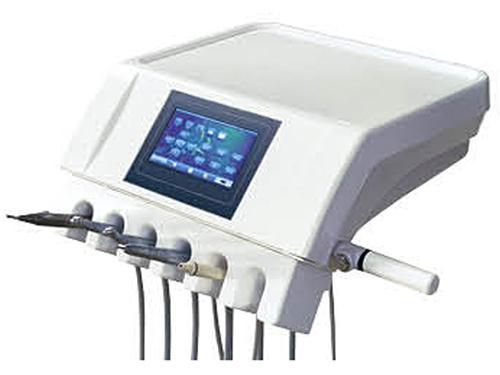

Instrument tray

The instrument tray has a concise, hassle-free overall appearance.

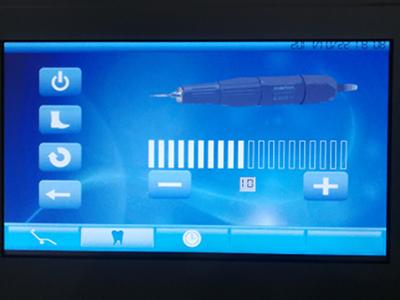

The instrument tray uses an LCD touch screen operating system which can store 3 dentist operation interfaces.
The LED screen can be converted into an X-ray film viewer.
Users can adjust the power of the dental scaler and micro electro-motor on the LCD interface.
The instrument tray has 6 hangers.
The four-hole handpiece which uses advanced PU materials that are corrosion resistant, high-pressure resistant and aging-resistant.
The instrument tray has a one six-way syringe that is equipped with a water supply heating function.

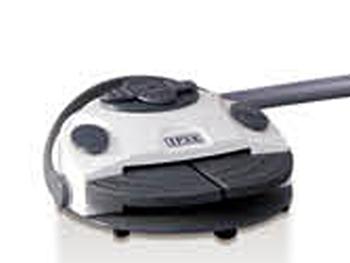

Multifunctional foot control

Dentists can adjust the height of chair and back by using a foot pedal.
Dentists can also control the spittoon water supply for the mouth rinse cup by using the foot pedal. It can also provide cleaning water.
A multifunctional foot pedal controls water and air supply for the dental handpiece.
A multifunctional foot pedal controls the dental handpiece's water/air separation performance.

Standard configurations

Optional configurations

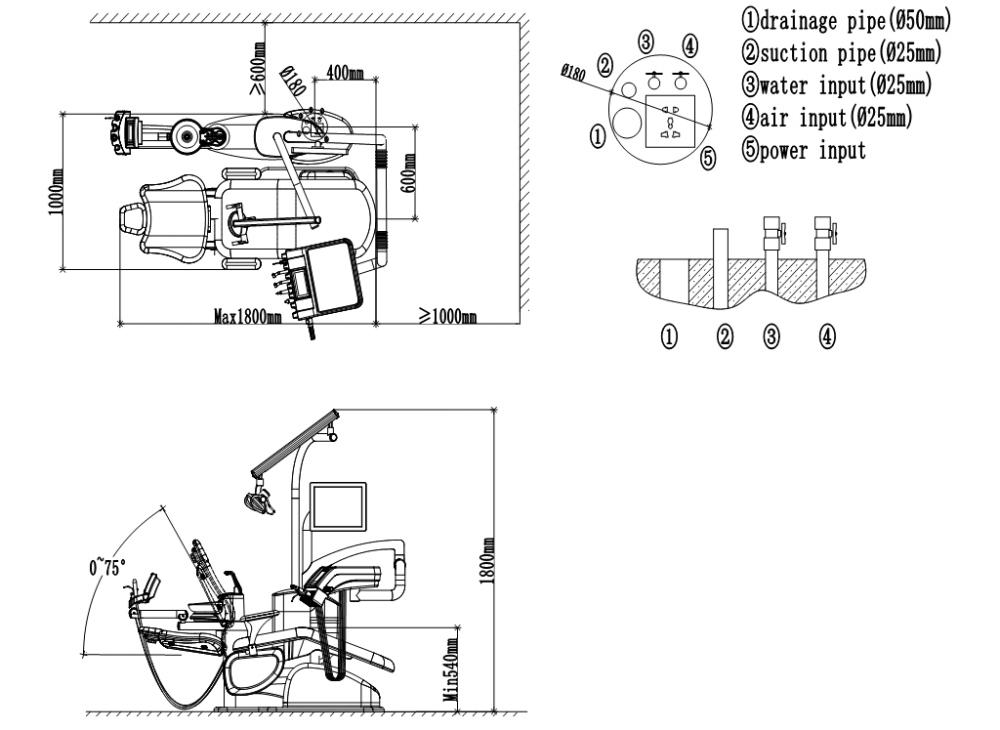

Installation
