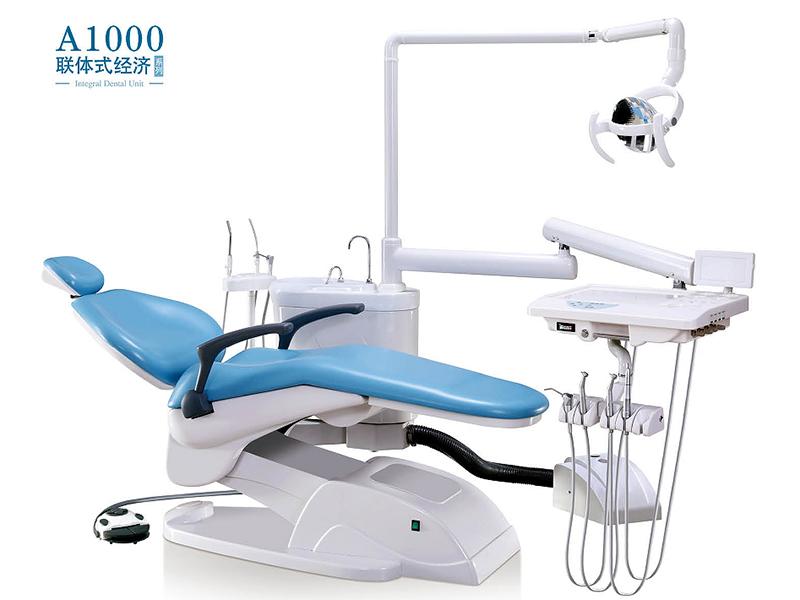

A1000 Dental Chair Unit (integrated dental chair, handpiece, LED light)
Technical parameters
- Power supply: AC220V/110VC 50/60HZ
- Input power: 1200W
- Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
- Dental operatory light (cold light): AC12--24V/6W--10W
- X-ray film viewer: AC24V/4W
- Water supply thermostat: AC24V/80W temperature: 40℃±5℃
- DC motor: DC24V/L3.8A
- Dental operatory light color temperature: ≤4500K
- Dental operatory light intensity: 7000lux--42000lux
- Minimum height of the chair: ≦50cm
- Maximum height of the chair: ≧75cm
- Load of chair: ≤250kg
- Chair cushion: < 1.9m
- Load of dental instrument tray: 1.5KG
- Size of dental chair unit: 155*105*125 cm
- Packed weight: 250KG
Features
The A1000 dental chair unit uses an easy to clean ceramic spittoon, as well as a large instrument tray to adequately fit all necessary equipment.- Patients and dentists alike can directly view their oral condition using the dental x-ray film viewer.
- Because the instrument tray is top mounted, it is easy for dentists to select their various instruments. The operation light can also be switched on/off, as well as adjust the light intensity via manual or induction mode.
- For after-sales repair, the components of the dental chair can be directly removed, making the repair process easier.
Component introduction
-
Electric patient chair
- The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
- The chair height is controlled using a low voltage DC24V motor with a gas spring to assist, which ensures lifting is stable and fast.
-

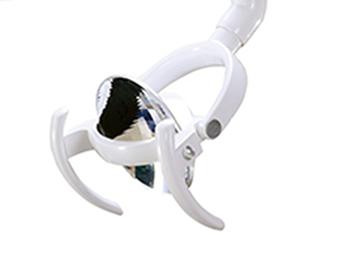

Dental operatory light
- Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
- Users can switch the light on/off in a manual or induction mode.
-
Instrument tray
- A no-screw design for the shell brings makes after sales service and maintenance easy.
- The instrument tray has an X-ray film viewer, making it easy for dentists to communicate needs to their patients.
- Four-hole handpiece tubing uses advanced PU material that is corrosion resistant, high-pressure resistant and aging-resistant.
-
Multifunctional foot control
- Dentists can adjust the height of chair and back by using a foot pedal.
- Dentists can also control the spittoon water supply for the mouth rinse cup by using the foot pedal. It can also provide cleaning water.
- A multifunctional foot pedal controls water and air supply for the dental handpiece.
- A multifunctional foot pedal controls the dental handpiece's water/air separation performance.
Standard configurations
- Electric patient chair 1set
- Water supply and conversion system for dental unit 1set
- Mouth wash supply thermostat 1set
- Dentist's module with pneumatic lock 1set
- Touchpad instrument table 1set
- LED dental operatory light 1set
- Four-hole handpiece tubing 3set
- Three-way syringe 2set
- Strong/weak saliva suction system 1set
- Multifunctional foot control 1set
- Dentist chair 1set
Optional configurations
- Dental scaler
- Curing light
- Dental handpiece with high/low speed
- Medical air compressor
- Intraoral camera (+display)
- Other corollary equipment
