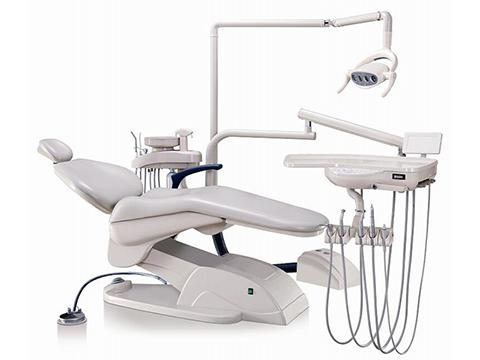

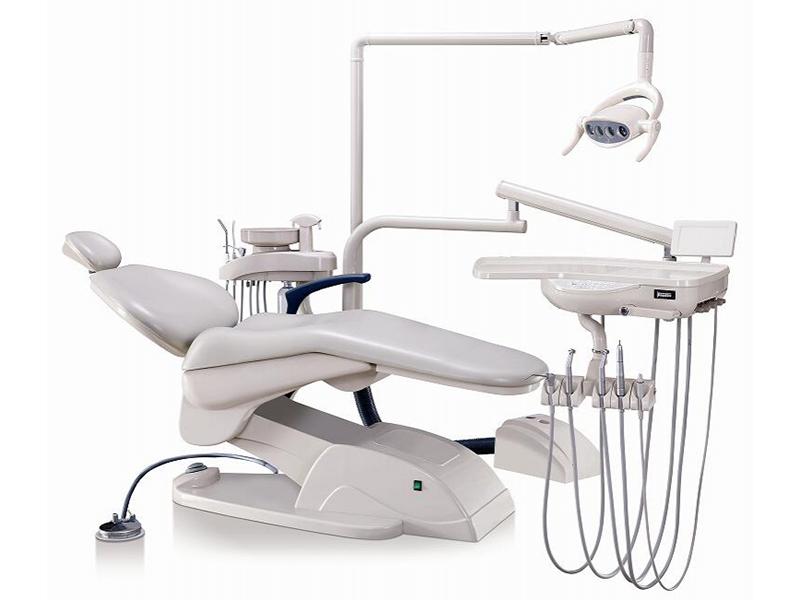

A800-I Dental Chair Unit (memory foam dental chair, handpiece, LED light)

Technical parameters
  • Power supply: AC220V/110VC 50/60HZ
  • Input power: 1200W
  • Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
  • Dental operatory light(cold light) : AC12--24V/6W--10W
  • X-ray film viewer: AC24V/4W
  • Water supply thermostat: AC24V/80W Temperature: 40℃±5℃
  • DC motor: DC24V/L3.8A
  • Dental operatory light color temperature: ≤4500K
  • Dental operatory light intensity: 7000lux--42000lux
  • Minimum height of the chair: ≦50cm
  • Maximum height of the chair: ≧75cm
  • Load of chair: ≤250kg
  • Cushion: < 1.9m
  • Load of dental instrument tray: 1.5KG
  • Size of Dental Chair Unit: 155*105*125 cm
  • Packed weight: 210KG
Features
A800-I dental chair unit uses a single-arm design that makes it easier for patients to get on and off the chair. The top mounted instrument tray also makes it easy for the dentist to find the tools they need, and prevents the handpiece from leaking water.
  • The chair is comfortable and the rising/lowering is stable, ensuring patient comfort.
  • The equipment is easy to use, with a clear operational program. The air/water separation function in the dental hand piece is controlled using a foot pedal.
  • In after-sales repair instances, an easy fitting shell facilitates maintenance of internal components, which saves time.
Component introduction
    Electric patient chair
  • The chair uses electric control for the height.
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • The chair height is controlled using a low voltage DC24V motor with a gas spring to assist, which ensures lifting is stable and fast.

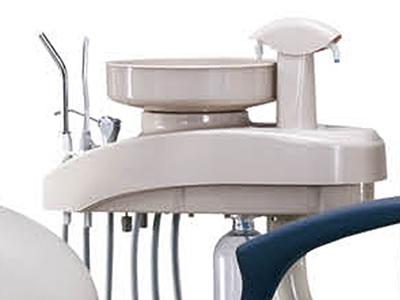

    Spittoon
  • The spittoon can be removed for easy disinfection. It also features a simple design, with multiple functions. The side pod also features a simple design.
  • Spittoon is made up of ceramic materials, which makes cleaning easier.

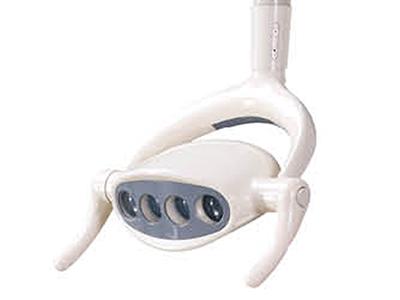

    Dental operatory light
  • Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
  • Users can switch the light on/off in a manual or induction mode.
  • Users can adjust the light's intensity in a manual or induction mode.

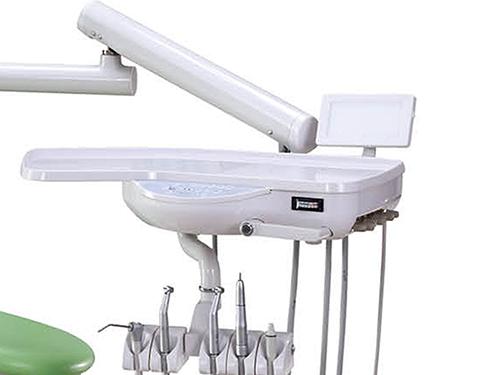

    Instrument tray
  • Both the dentist and patient will be able to clearly determine internal oral conditions using the dental x-ray film viewer.
  • The four-hole handpiece is corrosion resistant, high-pressure resistant and aging-resistant.

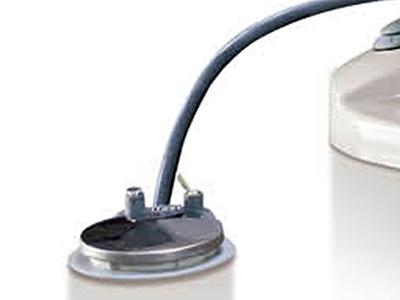

    Foot Control
  • A multifunctional foot pedal controls water and air supply for the dental handpiece.
  • A multifunctional foot pedal controls the dental handpiece's water/air separation performance.
Standard configurations
  • Electric patient chair 1set
  • Water supply and conversion system for dental unit 1set
  • Dentist's module with pneumatic lock 1set
  • Touchpad instrument table 1set
  • LED dental operatory light 1set
  • Four-hole handpiece tubing 3set
  • Three-way syringe 2set
  • Strong/weak saliva suction system 1set
  • Multifunctional foot control 1set
  • Dentist chair 1set
Optional configurations
  • Dental scaler
  • Curing light
  • Dental handpiece with high/low speed
  • Medical air compressor
  • Intraoral camera (+display)
  • Other corollary equipment
