Water supply thermostat:AC24V/80W temperature: 40℃±5℃
DC motor: DC24V/L3.8A
Working air pressure: 0.5--0.8Mpa，working water pressure: 0.2--0.3Mpa
Load of dental instrument tray: 1.5KG
Size of pediatric dental chair:
Size of chair packaging: 155*95*84 cm
Size of complete packaging: 155*115*120 cm
Packed weight: 380KG

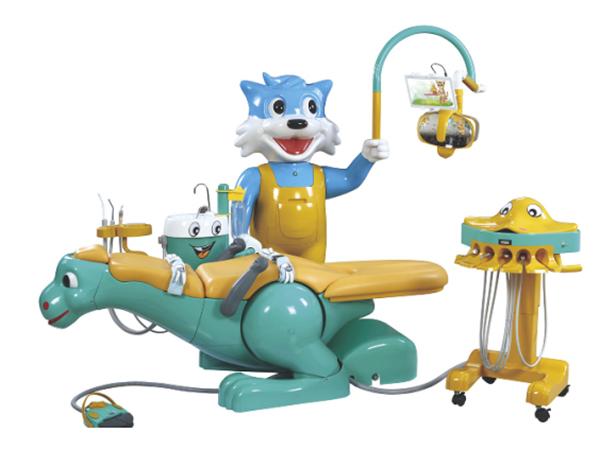

Bright spot
The product uses a harmonious color match based on yellow, green and blue, lovely cartoon style design like running dinosaur, rotatable bluecat and removable mudskipper and many other elements.
Cartoon style design and animal elements can distract children patients and relax them, which helps shorten the treatment time.
The equipment has the function of adjusting the lift of the chair and the back. The chair can hold the same weight as an adult's dental chair. The motor can bear force up to 8000N.
The cushion of the dinosaur-shaped chair uses memory foam technology which meets the ergonomics and so makes children feel comfortable on it.
Prolonged dinosaur cushion expands the range of heights used by children from 120cm previously to 150cm currently.
The surface of the equipment are molded by injection mold, so it has better hardness and better accuracy. The shell color is produced by molds directly and does not need paint spraying.
The water pipe, gas pipe and valve body inside the machine all use imported European and American high-quality PU materials, with structural steel up to thickness of 12mm and sheet metal accessories processed by stainless steel.
Component introduction

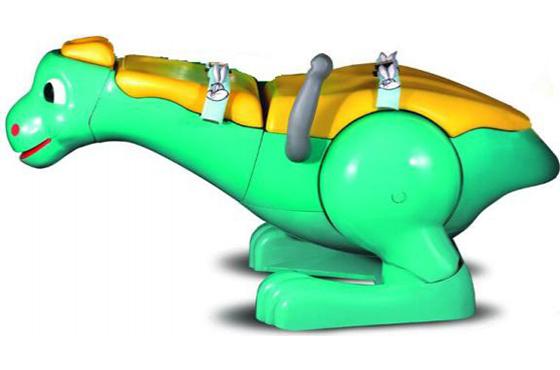

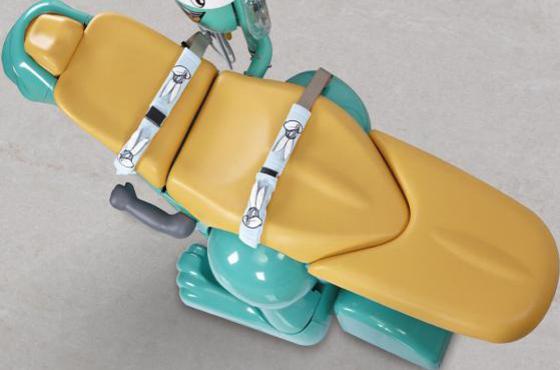

Electric patient chair
Dinosaur-shaped chair can hold weight up to 150kg, which is same as the adult dental chair.
The tail of the chair has prolonged cushion which can be used by children aged 12 and under.
The surface of the chair are molded by injection mold which is not easy to burst or deform, and easy to dismount and assemble.
The cushion of the dinosaur-shaped chair uses memory foam PU technology which meets the ergonomic design to make children feel comfortable on it. Buckle installation.
The height of chair back and body is controlled by low voltage DC motor with gas spring assisting the work, which makes the course of lift stable and fast.

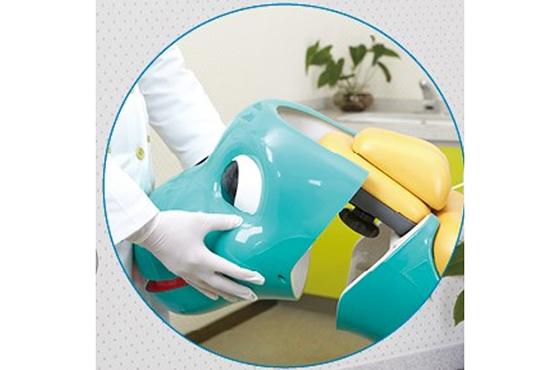

The dinosaur's head can be dismounted. The height of the headrest can be adjusted flexibly.
Electric patient chair
Electric patient chair
Dinosaur's head

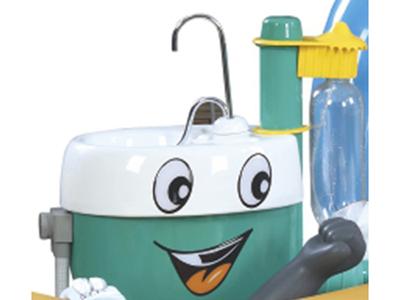

Spittoon
Spittoon uses a smiling apple pattern in appearance design to relax young patients. It can also reduce the difficulty of the dentist's work.
Spittoon is made up of ceramic materials, which makes cleaning and disinfection easier.

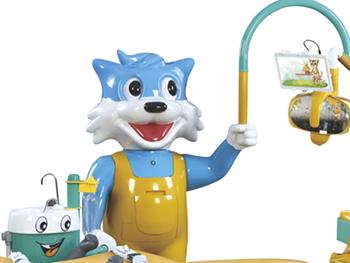

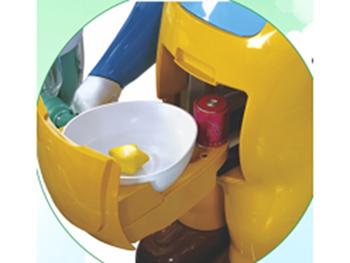

Bluecat side box
The bluecat holds the tablet playing cartoons and elephant nose dental operatory Light for Children by its left hand.
The bluecat holds smiling apple spittoon by its right hand.
There is small drawer in the blue cat's stomach pocket, in which dentist can place some small gifts to attract children's attention.

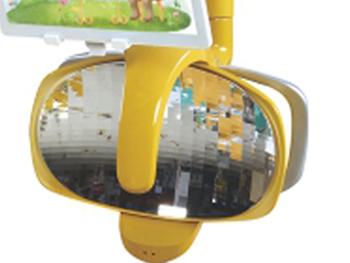

Dental operatory light
Good spotlight and uniform distribution of light spot provide convenience for dentist to observe the status of patient's oral cavity from all angles.
The light cannot be deviated to patient's eyes because of uniform light pattern.
You can switch on/off the operatory light and adjust its brightness by manual or induction mode.

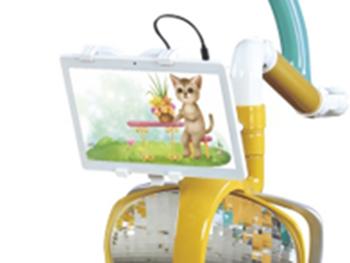

Children entertainment tablet
Entertainment tablet can be installed on the dental operatory light. Children can forget fear of treatment in some degree when they enjoy their favorite show.
Tablet holder can be 360-degree adjusted according to patient's view.
Tablet holder can be placed on tablets of different sizes, patients' own tablet is also usable.

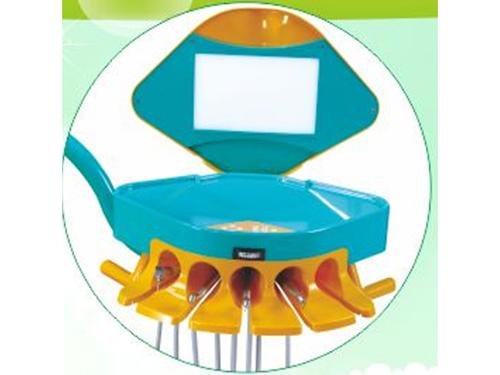

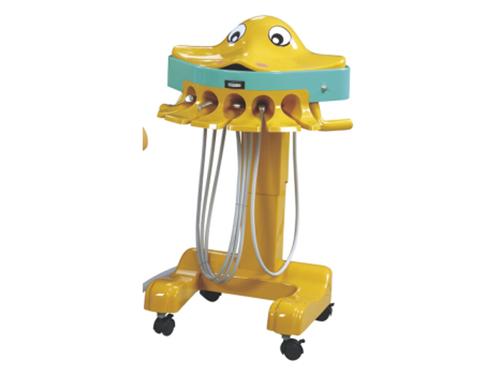

Mudskipper-shaped pusher delivery unit
The delivery unit has trundle which can be locked, so you can easily transform the mode (removable/locked).
The delivery unit uses Mudskipper pattern in appearance design to distract young patients. It can also reduce the fear of them.
The delivery unit can be adjusted to different height, which brings convenience to the dentist.
Dentist can see oral panorama easily because of ultra-wide panel film viewer inside the delivery unit.
Three Four-hole handpiece tubing's use advanced PU material which is corrosion resistant, high-pressure resistant and aging-resistant.
Three-way syringe design provide convenience to wash affected area in patients' oral cavity.
Multifunctional foot control
Dentist can adjust the height of chair and back by using foot pedal. Dentist can also control water supply of spittoon for mouth rinse cup by using foot pedal, it can also provide cleaning water.
Multifunctional foot pedal controls water and air supply of the dental handpiece.
Multifunctional foot pedal controls the dental hand piece's function of separating water from air.
