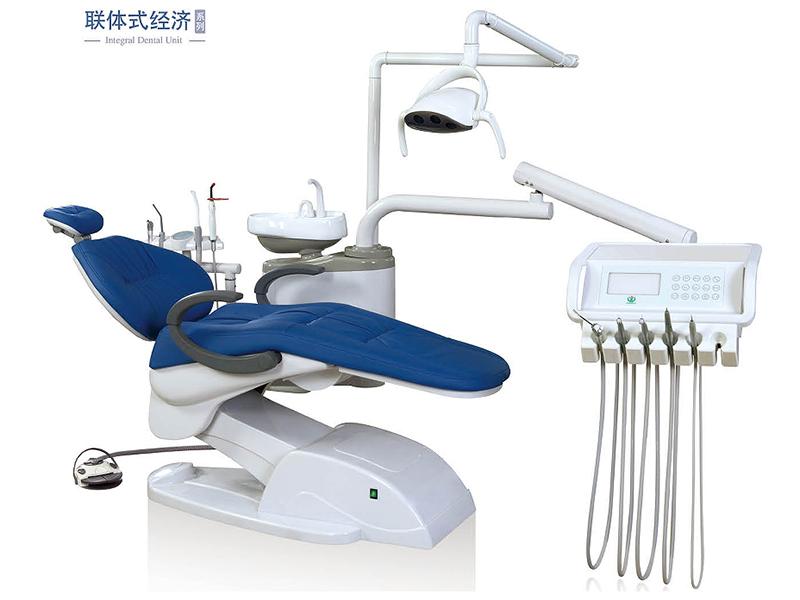

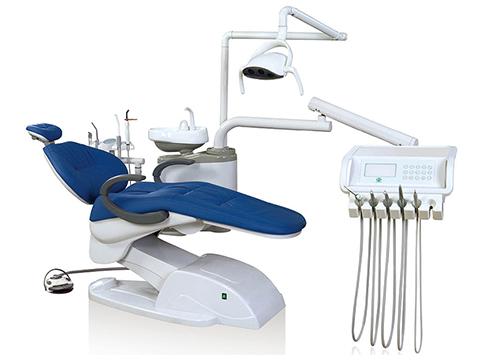

A3000 Dental Chair Unit (dental chair, handpiece, patient monitor, LED light)

Technical parameters
  • Power supply: AC220V/110VC 50/60HZ
  • Input power: 1200W
  • Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
  • Dental operatory light (cold light) : AC12--24V/6W--10W
  • X-ray film viewer: AC24V/4W
  • Water supply thermostat: AC24V/80W temperature: 40℃±5℃
  • DC motor: DC24V/L3.8A
  • Oral operatory light color temperature: ≤4500K
  • Dental operatory light intensity: 7000lux--42000lux
  • Minimum height of the chair: ≦50cm
  • Maximum height of the chair: ≧75cm
  • Load of chair: ≤250kg
  • Chair cushion: < 1.9m
  • Load of dental instrument tray: 1.5KG
  • Size of dental chair unit: 155*105*125 cm
  • Packed weight: 250KG
Features
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • An all direction, automatic control program offers single button operation. The side box can also turn 90 degrees, and provides a larger work space for the assistant.
  • After sales maintenance is easy, as the dental chair uses a no-screw fixation method. This facilitates quick maintenance, saving users time, money and effort.
Component introduction

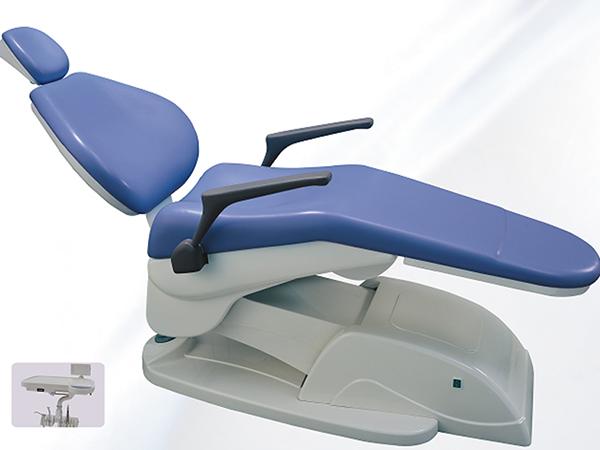

    Electric patient chair
  • The chair uses electric control for the height.
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • The chair height is controlled using a low voltage DC24V motor with a gas spring to assist, which ensures lifting is stable and fast.

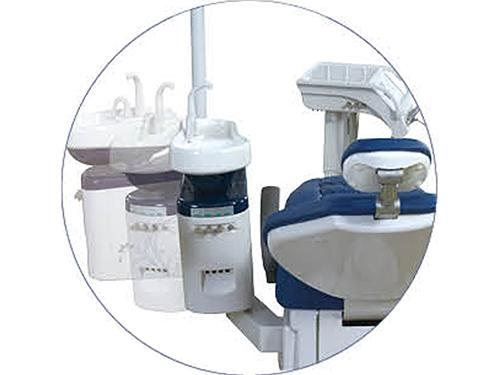

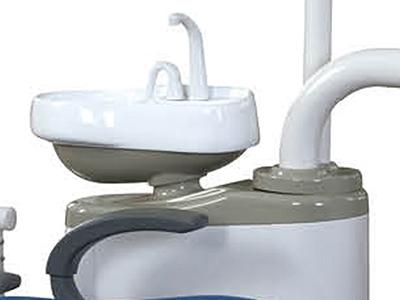

    Spittoon
  • The spittoon can be turned 90 degrees, which makes spitting easier.
  • The side box can be turned 90 degrees, which offers more space for the dentist.
  • The water nozzle can be removed, making the disinfection process easier.

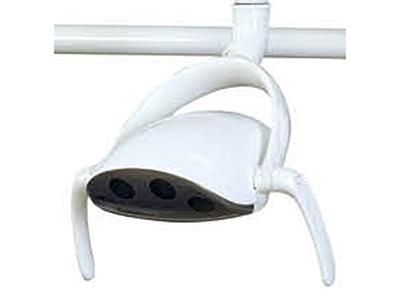

    Dental operatory light
  • Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
  • Users can switch the light on/off in a manual or induction mode, as well as adjust the intensity in a manual or induction mode.

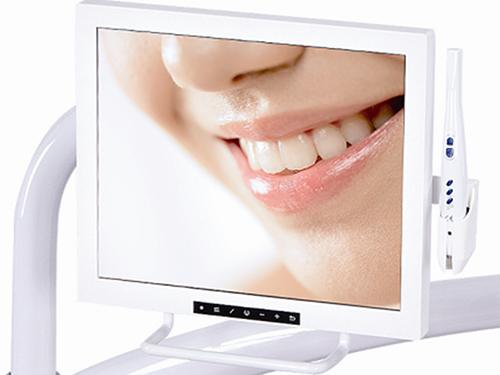

    Monitor system
  • The pulse oximeter monitor directly reflects patient conditions.
  • Intraoral camera helps the dentist check the oral condition of the patient and promotes the communication between dentist and patient.

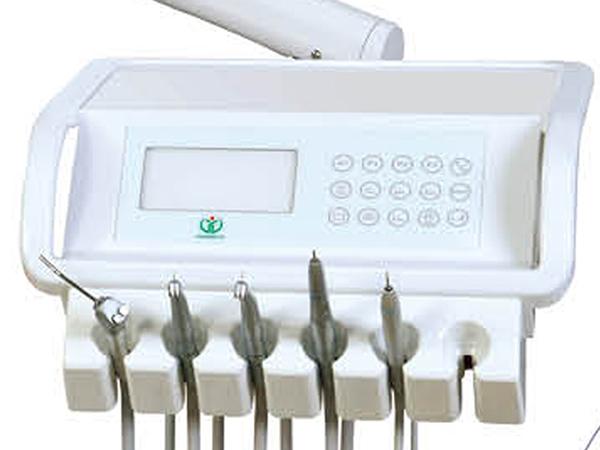

    Instrument tray
  • The instrument tray has an inductive operatory control system that features 3 memory keys for adjusting the chair's height.
  • The dental x-ray film viewer facilitates easy viewing for treatment discussions.
  • The instrument tray has right and left hidden air-lock balance on-off switches, allowing the instrument to be used in a wider space range.
  • The instrument tray has 6 hangers.
  • Four-hole handpiece tubing uses advanced PU material that is corrosion resistant, high-pressure resistant and aging-resistant.

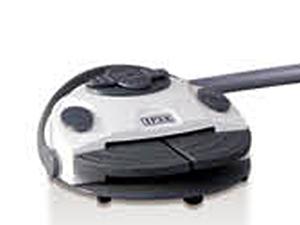

    Multifunctional foot control
    The foot control's functions are as follows:
  • Adjusting the height of chair and back
  • Controlling water supply of spittoon for mouth rinse cup and providing cleaning water.
  • Controlling water and air supply of the dental handpiece.
  • Controlling the dental handpiece's air/water separation functions.
Standard configurations
  • Electric patient chair 1set
  • Rotatable side box and spittoon 1set
  • Water supply and conversion system for dental unit 1set
  • Mouth wash supply thermostat 1set
  • Dentist's module with pneumatic lock 1set
  • Inductive touchpad instrument table 1set
  • Dental operatory light 1set
  • Four-hole handpiece tubing 3set
  • Three-way syringe 2set
  • Strong/weak saliva suction system 1set
  • Multifunctional foot control 1set
  • Dentist chair 1set
  • Nurse chair 1set
Optional configurations
  • Dental scaler
  • Curing light
  • Dental handpiece with high/low speed
  • Medical air compressor
  • Medical saliva suction negative-pressure machine
  • Intraoral camera (+display)
  • Other corollary equipment

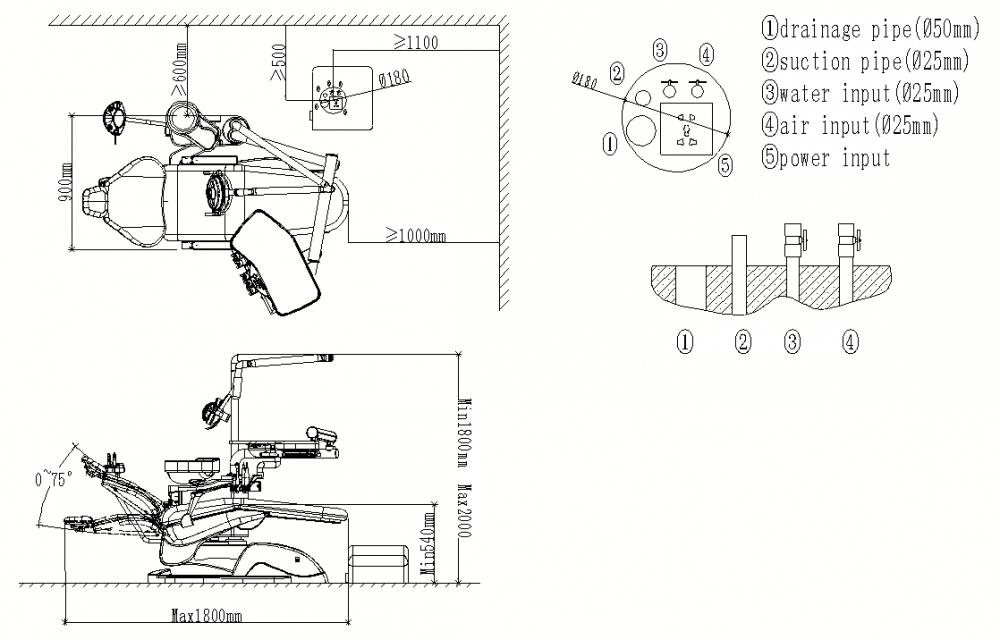

Installation
