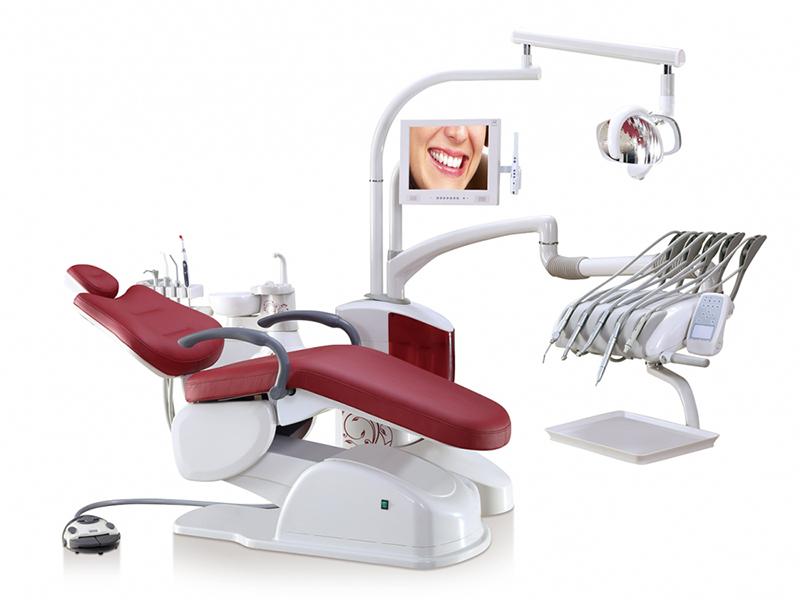

A6600 Dental Chair Unit (comfort dental chair, handpiece, endoscope, LED light)

Technical parameters
  • Power supply: AC220V/110VC 50/60HZ
  • Input power: 1200W
  • Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
  • Dental operatory light (cold light): AC12--24V/6W--10W
  • X-ray film viewer: AC24V/4W
  • Water supply thermostat: AC24V/80W temperature: 40℃±5℃
  • DC motor: DC24V/L3.8A
  • Dental operatory light color temperature: ≤4500K
  • Dental operatory light intensity: 7000lux--42000lux
  • Minimum height of the chair: ≦50cm
  • Maximum height of the chair: ≧80cm
  • Load of chair: ≦250kg
  • Load of dental instrument tray: 1.5KG
  • Size of dental chair unit: 160*111*130 cm
  • Packed weight: 310KG
Features
  • The central body of the dental chair unit is attached to the ground, which improves both the stability and security of the chair.
  • The chair has an ergonomic design that ensures user comfort, even when laying down. 3) The spittoon is adjustable in an direction, making it easy for all patients to spit into it.
  • An intraoral camera helps the dentist with their exam, thus promoting communication between the dentist and patient.
Component introduction
    Electric patient chair
  • The chair uses electric control for the height
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • The chair height is controlled using a low voltage DC24V motor with a gas spring to assist, which ensures lifting is stable and fast.
    Spittoon
  • The spittoon can be turned 90 degrees, which makes spitting more convenient.
  • The height and the position of the spittoon can be controlled in a manual or induction mode.
  • The nurse control pedal can be rotated 90 degrees, so the operator has more space.
  • The ceramic tray and water nozzle can be removed, making the disinfection process easier.

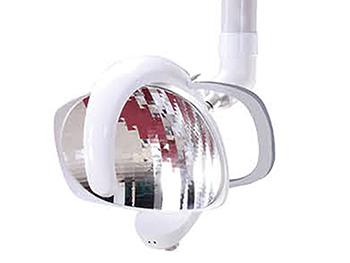

    Dental operatory light
  • Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
  • Users can switch the light on/off in a manual or induction mode, as well as adjust the light intensity in a manual or induction mode.
    Intraoral camera
  • The intraoral camera assists the dentist in monitoring the patient's oral condition, and thus, promotes communication between the dentist and patient.
    Instrument tray
  • The top-mounted handpiece design can meet different dentist habits.
  • The motion bar has three fixed positions.
  • The silicone cushion can withstand high temperature disinfection.
  • The instrument tray has a touch-tone control panel.
  • The four-hole handpiece which uses advanced PU materials that are corrosion resistant, high-pressure resistant and aging-resistant.

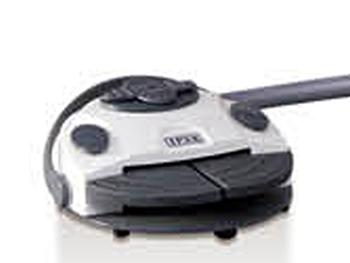

    Multifunctional foot control
  • Dentists can adjust the height of chair and back by using a foot pedal.
  • Dentists can also control the spittoon water supply for the mouth rinse cup by using the foot pedal. It can also provide cleaning water.
  • A multifunctional foot pedal controls water and air supply for the dental handpiece.
  • A multifunctional foot pedal controls the dental handpiece's water/air separation performance.
Standard configurations
  • Electric patient chair 1set
  • Split type side box 1set
  • Adjustable spittoon 1set
  • Assistant control console 1set
  • Water supply and conversion system for dental unit 2set
  • Mouth wash supply thermostat 1set
  • Dentist's module with pneumatic lock 1set
  • Dentist instrument table 1set
  • LED dental operatory light 1set
  • Multifunctional foot control 1set
  • Four-hole handpiece tubing 3set
  • Three-way syringe 2set
  • Strong/weak saliva suction system 1set
  • Dentist chair 1set
  • Nurse chair 1set
Optional configurations
  • Dental scaler
  • Curing light
  • Dental handpiece with high/low speed
  • Medical air compressor
  • Medical saliva suction negative-pressure machine
  • Intraoral camera (+display)
  • Other corollary equipment

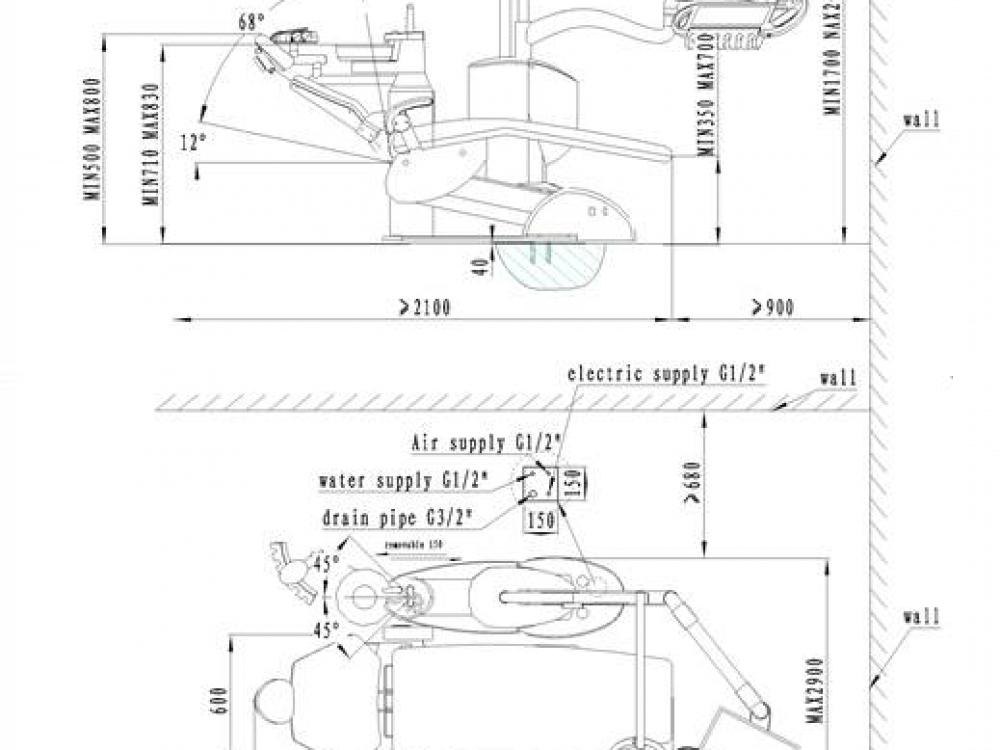

Installation
