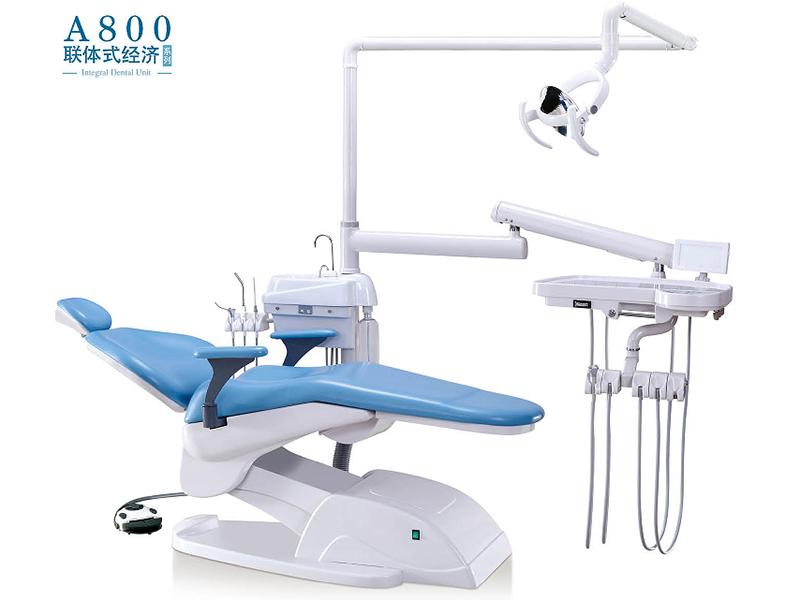

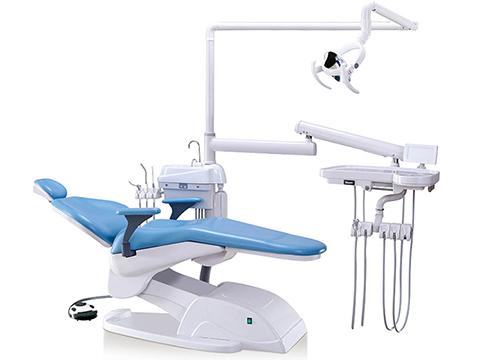

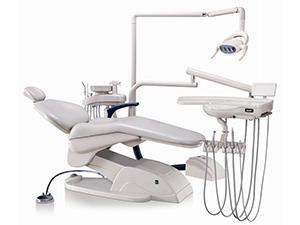

A800 Dental Chair Unit (electric dental chair, handpiece, DC motor, LED light)

Technical parameters
  • Power supply: AC220V/110VC 50/60HZ
  • Input power: 1200W
  • Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
  • Dental operatory light(cold light): AC12--24V/6W--10W
  • X-ray film viewer: AC24V/4W
  • Water supply thermostat: AC24V/80W Temperature: 40℃±5℃
  • DC motor: DC24V/L3.8A
  • Dental operatory light color temperature: ≤4500K
  • Dental operatory light intensity: 7000lux--42000lux
  • Load of dental instrument tray: 1.5KG
  • Size of dental chair unit: 155*105*125 cm
  • Packed weight: 250KG
Features
The A800 dental chair unit uses an easy to clean ceramic spittoon, as well as a large instrument tray to adequately fit all necessary equipment.
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • The equipment is easy to use, with a clear operational program.
  • In after-sales repair instances, an easy fitting shell facilitates maintenance of internal components, which saves time.
Component introduction

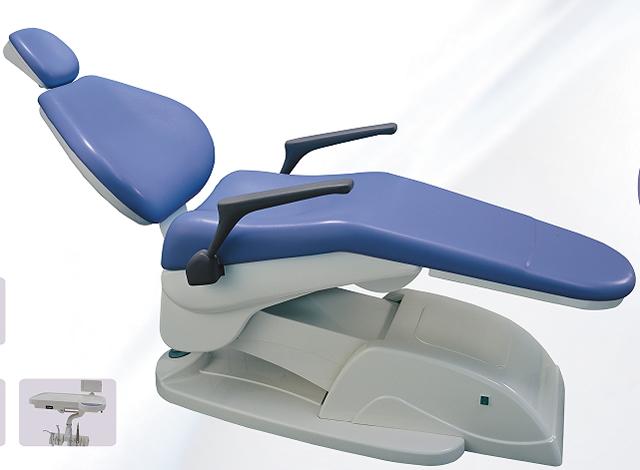

    Electric patient chair
  • The chair uses electric control for the height, which ranges between 50 and 75cm.
  • The chair can bear a load up to 250kg, with a length of 1.9m.
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • The chair height is controlled using a low voltage DC24V motor with a gas spring to assist, which ensures lifting is stable and fast.

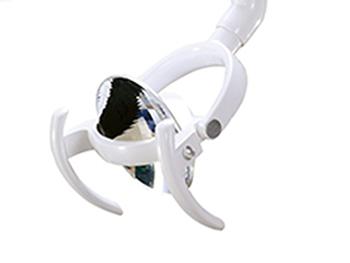

    Dental operatory light
  • Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
  • The light will not shine directly in the patient's eyes due to the uniform light pattern.
  • Users can switch the light on/off in a manual or induction mode.
  • Users can adjust the light's intensity in a manual or induction mode.

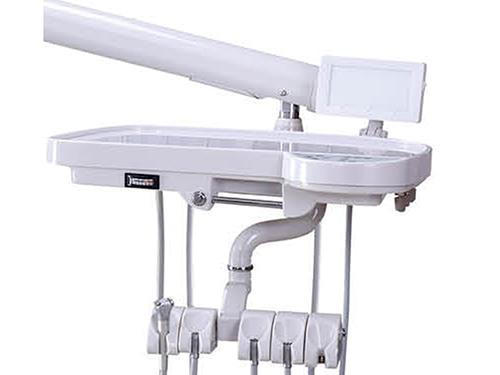

    Instrument tray
  • No-screw design for the shell ensures convenient after sales service and maintenance.
  • The instrument tray has an X-ray film viewer.
  • Four-hole handpiece tubing uses advanced PU material that is corrosion resistant, high-pressure resistant and aging-resistant.

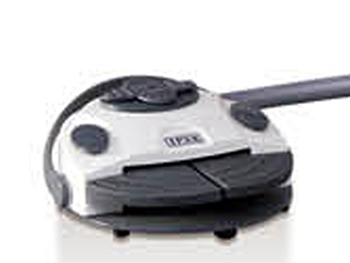

    Multifunctional foot pedal
  • Dentists can adjust the height of chair and back by using a foot pedal.
  • Dentists can also control the spittoon water supply for the mouth rinse cup by using the foot pedal. It can also provide cleaning water.
  • A multifunctional foot pedal controls water and air supply for the dental handpiece.
  • A multifunctional foot pedal controls the dental handpiece's water/air separation performance.
Standard configurations
  • Electric patient chair 1set
  • Water supply and conversion system for dental unit 1set
  • Dentist's module with pneumatic lock 1set
  • Keypad instrument table 1set
  • LED dental operatory light 1set
  • Four-hole handpiece tubing 3set
  • Three-way syringe 2set
  • Strong/weak saliva suction system 1set
  • Multifunctional foot control 1set
  • Dentist chair 1set
Optional configurations
  • Dental scaler
  • Curing light
  • Dental handpiece with high/low speed
  • Medical air compressor
  • Intraoral camera (+display)
  • Other corollary equipment
