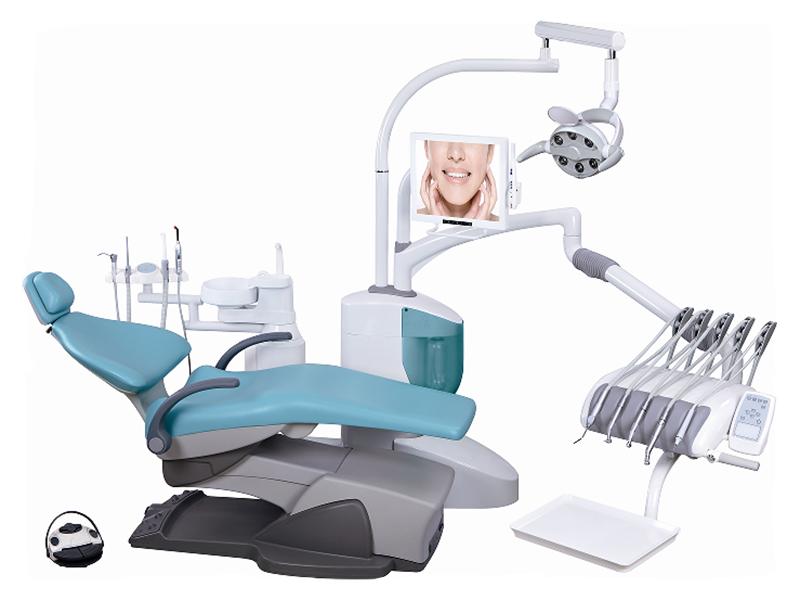

A3600 Dental Chair Unit (Tecnodent dental chair, handpiece, endoscope, LED light)

Technical parameters
  • Power supply: AC220V/110VC 50/60HZ
  • Input power: 1200W
  • Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
  • Dental operatory light (cold light): AC12--24V/6W--10W
  • X-ray film viewer: AC24V/4W
  • Water supply thermostat: AC24V/80W temperature 40℃±5℃
  • DC motor: DC24V/L3.8A
  • Dental operatory light color temperature: ≤4500K
  • Dental operatory light intensity: 7000lux--42000lux
  • Minimum height of the chair: ≦50cmmaximum height of the chair; ≧80cm;
  • Load of chair: ≦300kg;
  • Load of dental instrument tray: 1.5KG
  • Size of dental chair unit: 160*111*130 cm
  • Packed weight: 400KG
Features
  • The central body of the dental chair unit is attached to the ground, which improves both the stability and security of the chair.
  • The original EC019 chair produced by the Italian company TECNODENT features an ergonomic design that ensures patient comfort.
  • An intraoral camera helps the dentist with their exam, thus promoting communication between the dentist and patient.
Component introduction
    Electric patient chair
  • The chair uses electric control for the height.
  • The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
  • The height of chair is controlled using a 220V motor, which ensures a stable, fast lifting process.

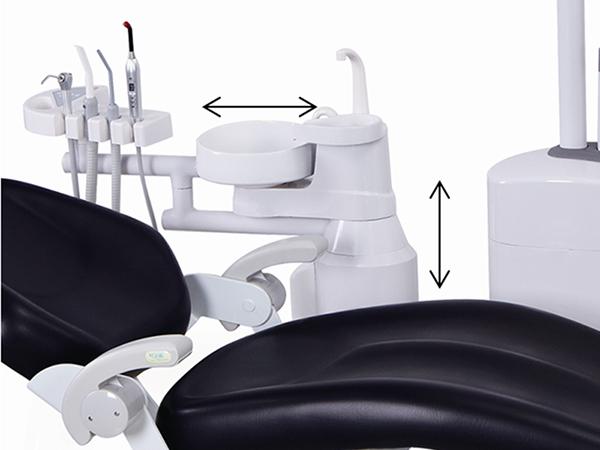

    Spittoon
  • The spittoon can be turned 90 degrees, which makes spitting easier.
  • The height and the position of the spittoon can be controlled using manual or induction mode.
  • The nurse bench board can be rotated 90 degrees, giving the operator more space.
  • The ceramic tray and water nozzle are removable, making the disinfection process easier.

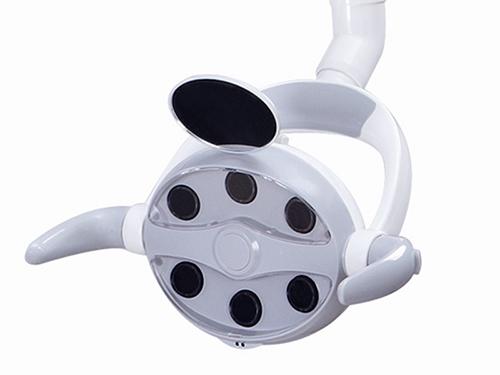

    Dental operatory light
  • Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
  • Users can switch the light on/off in a manual or induction mode, as well as adjust the light intensity in a manual or induction mode.
    Intraoral camera
  • The intraoral camera assists the dentist in monitoring the patient's oral condition, and thus, promotes communication between the dentist and patient.
    Instrument tray
  • The instrument tray uses a European style top-mounted handpiece design.
  • The motion bar on the handpiece has 3 fixed positions.
  • The silicone cushion can withstand high temperature disinfection.
  • The instrument tray is equipped with a keypad control panel.
  • The four-hole handpiece which uses advanced PU materials that are corrosion resistant, high-pressure resistant and aging-resistant.
    Multifunctional foot control
  • Dentists can adjust the height of chair and back by using a foot pedal.
  • Dentists can also control the spittoon water supply for the mouth rinse cup by using the foot pedal. It can also provide cleaning water.
  • A multifunctional foot pedal controls water and air supply for the dental handpiece.
  • A multifunctional foot pedal controls the dental handpiece's water/air separation performance.
Standard configurations
  • TECNODENT electric patient chair 1set
  • Floor side box 1set
  • Adjustable spittoon 1set
  • Keypad nurse control console 1set
  • Water supply and conversion system for dental unit 2set
  • Mouth wash supply thermostat 1set
  • Dentist's module with pneumatic lock 1set
  • Keypad instrument table 1set
  • LED dental operatory light 1set
  • Four-hole handpiece tubing 3set
  • Three-way syringe 2set
  • Strong/weak saliva suction system 1set
  • Multifunctional foot control 1set
  • Dentist chair 1set
  • Nurse chair 1set
Optional configurations
  • Dental scaler
  • Curing light
  • Dental handpiece with high/low speed
  • Medical air compressor
  • Medical saliva suction negative-pressure machine
  • Intraoral camera (+display)
  • Other corollary equipment

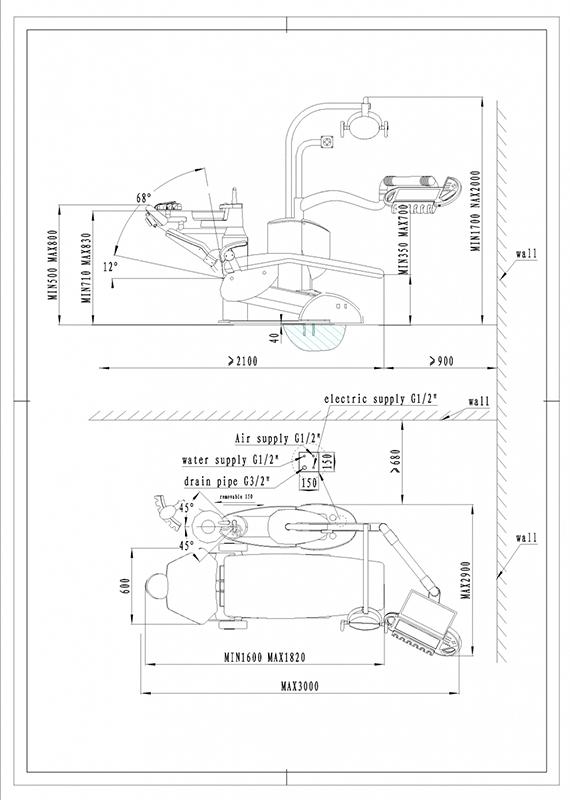

Installation
